MORE KIMT CO., LTD
FEATURES
*Instant heating: Ready to use within 5 seconds of switching on the power.
*Simple operation: Ergonomically designed control switches, independant PCB'S controls the feed, tension and heating functions allows for ease and simple maintenance.
*Easy tension adjustment: Conveniently mounted exteernal tension knob allows for ease and uninterrupted flow of operation.
*Energy-saving feature: Designed to cut off after 0-60 seconds when not in use ensures greater energy efficiency and prolongs motor life.
*Lift-up cover/front access do Makes access to engine during maintenance and strap change very easy.
*Revolutionery die-cast heater blade: This unique heater blade eliminates blade distortion, short-circuiting and rapid aging that are common of many conventional strapping machines.
*Wide range of suitable strap width: Simple to adjust strap guides allows for strap width of 6mm to 15mm to be used width ease.

SPECIFICATIONS
MODEL

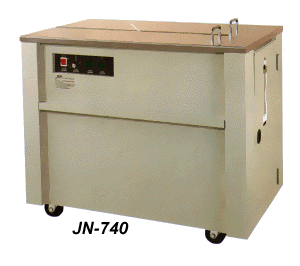

JN-740
JN-740L & JN-740SL
Strapping Speed
2 sec/strap
2 sec/strap
Minnimum Package Size
60 mm
60 mm
Maximum Package Size
Any Size
Any Size
Maximum Strength
5-60 Kgs
5-60 Kgs
Strap Width
6mm-15mm
6mm-15mm
Power
AC110/220V (50/60Hz)
AC110/220V (50/60Hz)
Dimensions
895mm(W)*570mm(D)*730mm(H)
1515mm(W)*570mm(D)*480mm (740L)
1515MM(W)*570mm(D)*330mm (740SL)
Net Weight
95 kgs
80 kgs
70 kgs (740SL)


YEN JAN CO., LTD.
Polypropylene Strapping Machine
ADVANCED DESK STYLE
DS-600

FEATURES:

EASY TO OPERATE: Simply one touch to get the machine working.
LIFT STYLE MACHINE TOP COVER: Easy for maintenance and safety.
EASY TO INSTALL STRAP: Strap changeover has been greatly simplified, and routine operation also made easier.
MOTOR STOP AUTOMATICALLY: The motor automatically switches off when not in use. And as soon as strap is inserted, the motor immediately re-starts automatically.
EXTERNAL TENSION ADJUSTMENT AND HIGH SPEED OPERATION.
INSTANT HEAT DESIGN: Only 5 seconds required to make heater blade work.
EXCLUSIVE HEATER ELEMENT: Avoids electric leakage, short circuits and lengthens the life of the heater blade.
ADJUSTABLE INSTALLATION: Suitable for 6mm-15mm.
SAFETY: All electric control with DC 24V ensures safety and lengthens the machine life cycle. (except motor power)

*AVAILABLE WITH BRAKE WHEEL REPLACEMENT.
MODEL
DS-600
DS-600L
DS-600SL
Strapping Speed
1.5 sec/strap
1.5 sec/strap
1.5 sec/strap
Minimum Package Size
60 mm
60 mm
60 mm
Maximum Package Size
Any Size
Any Size
Any Size
Maximum Strength
65 Kgs
65 Kgs
65 Kgs
Strap Width
6mm - 15mm
6mm - 15mm
6mm - 15mm
Power
AC100/220V (50/60Hz)
AC100/220V (50/60Hz)
AC100/220V (50/60Hz)
Driving Motors
220V/110V 200W
220V/110V 200W
220V/110V 200W
Dimension
895mm(w)*570mm(d)*735mm(h)
1450mm(w)*570mm(d)*480mm(h)
1450mm(w)*570mm(d)*305mm(h)
Net Weight
95 Kgs
80 Kgs
70 Kgs

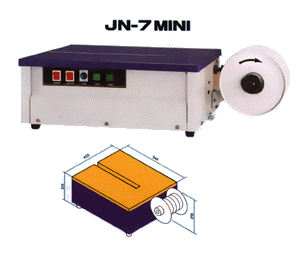

Mini Desk Type Strapping Machine
*Easy To Operate: Suitable For Light package using 6-15mm.
*Save Energy: Complete stop on Motor after strapping saves electricity and minimizes depletion.
*Instant heat only 5 seconds to operate.
*Lift type machine top cover.
*Adjustable Tension from 0.6-45kg.
*SPECIFICATIONS
MODEL

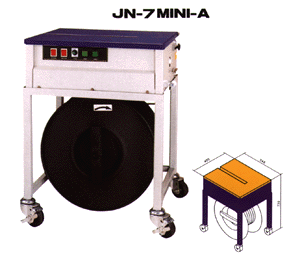

JN-7MINI-A
Strapping speed
2.5 sec/strap
Strap width
6-9mm (JN-7MINI)
6-15mm (JN-7MINI-A)
Electric power
AC110/220V (50/60Hz)
Dimension
540W*455D*210H
Tension
0.6kg-45kg
* Specifications subject to change without note.

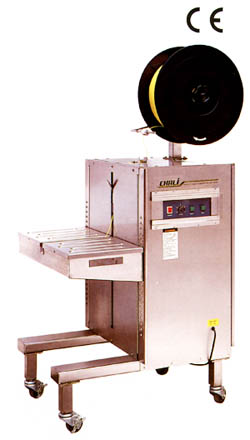

DS-600VS MODEL STRAPPING MACHINE
SAFE, EASY TO OPERATE, STAINLESS FRAME.
FEATURES:
Safety
24VDC electrics eliminates possibility of machine
electrical shocks.

Anti-Rust Side Seal Head
The DS-600VS strapping head is installed in the
vertical position to minimise rust and prevent
and strap contamination.

Simple Maintenance
It is very easy to replace and maintain the change-
able PC circuit board. Maintenance on the side
seal head can also be done safely and easily.

Extra Equipments
The machine can be installed the following extra
equipments according to the customer's require-
ment.
1)To use stainless roller for feed or reset strap
(inner mechanism).
2)To enlarge the area (length or width) of pack-
ing table.
3)To change casters into stainless casters.
4)To install the small lamp inside of machine for
remaining the inner of machanism more dry.

Specifications:
Strapping Speed 1.5sec/strap
Minimum Package Size 60mm
Maximum Package Size Any Size
Maximum Strength 65 kgs
Strap Width 6mm-15mm
Power AC 110/220V(50/60Hz)
Driving Motors 220V/110V 200W
Dimension 675mm(W)x1045mm(D)x1720mm(H)
Net Weight 130 kgs
Gross Weight 192 kgs
