KIMT CO., LTD |
Fully Automatic Strapping Machine
SPECIFICATION
| Dimensions |
1400(width), 640(depth), 1535(height) |
| Strap Width |
9, 12, 15, 19mm |
| Speed |
30 straps/60 sec (60Hz) |
| Tension |
70 Kg |
| Power Supply |
1 phase 110/220V 3 phase 220/380, 50/60 HZ |
| Packing Size |
100-850mm width 30-600mm height |
F:\LIB\OPERS\DOC\JN75Q.DOC
FEATURES:

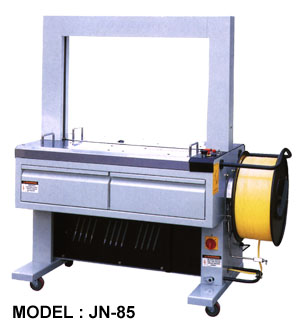

* The JN-85 is an automatic, arch style strapping machine. It is single circuit of electric control and available in
110/220 Volt-single phase (380/415 Volt-3 phase is available as an option).
* The JN-85 equipped with an easy-strap-feed system and electric tension control. Available in many arch sizes.
This unlt is well suited to most general packaging requirements and can be used in a variety of work environment.
* The unit features increased speed, an improved design which electrical components can be pull-out or stick
into and can decrease required maintenance, repair it easity and safely.
* The mechanism constructure is simplicity of design and long term reliability & durable and the electric
components adapt the safe secification.
* For the operator's requirement, the machine can be installed with different kinds of operation equipments as
follow:
A) Ball table switch B)To press the switch by hand C)Foot petal switch
|
