MORE KIMT CO., LTD

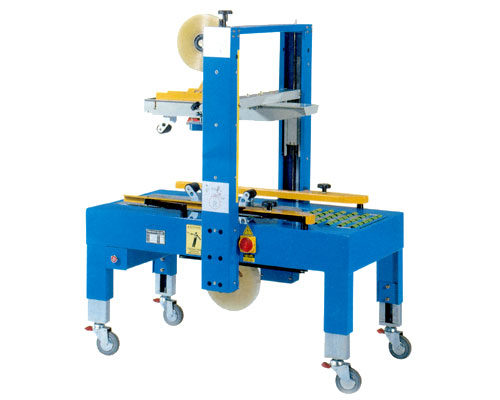

Carton Sealing Machine



Product Information

Model/Item No.:TJ-551B

Specifications/Features:


1. Integral style, splendid design.
2. Two Model Variations: two belts drive at the bottom, a
   total of 4 belts drive at the top and bottom.

Primary Competitive Advantages:

. Excellent and High Quality Control
. Prompt Delivery
. Customer's Designs and Logos are Welcome
. Competitive Price
. Fit for Gifts & Premiums
. In a Variety of Designs
. Small Order Accepted
. ODM Accepted
. OEM Accepted



Fully-auto Carton Sealing Machine
Product Information

Model/Item No.:TJ-558F

Specifications/Features:

. TJ-558F has a total of 4 belts driven.
  Due to there are two belts on the two sides, other two
  belts on the top of the machine, and 3 motors to supply
  the power, this machine is very suit for more heavy and
  thin-high type of cartons.

Primary Competitive Advantages:

. Excellent and High Quality Control
. Prompt Delivery
. Customer's Designs and Logos are Welcome
. Competitive Price
. Fit for Gifts & Premiums
. In a Variety of Designs
. Small Order Accepted
. ODM Accepted
. OEM Accepted

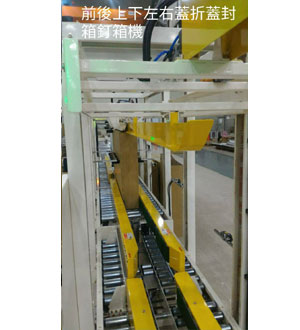

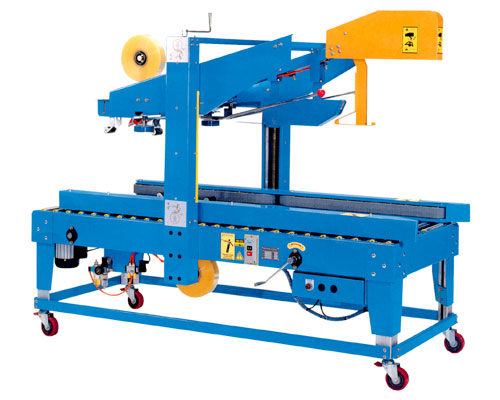

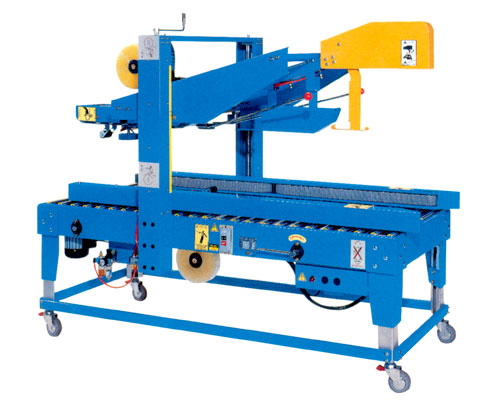

Auto Folding and Sealing Machine
Product Information

Model/Item No.:TJ-557F

Specifications/Features:

1. Fold the top flaps automatically.
2. Accomplish the operation successfully at one go.
3. Be smooth and save strength.
4. Suit with automation of packaging system.
5. New tapping head use an impressed plate instead of a
   blower to blow the straight tape that can prevent not to
   fasten from the bend tape.
6. Two sides belt driven, main driven mechanism uses
   special bearing bracket that its advantage is high
   precise, low noise to strengthen the belt’s life.
7. Tape overlap length can be adjusted from 55 ~ 65mm to
   75mm.

Primary Competitive Advantages:

. Excellent and High Quality Control
. Prompt Delivery
. Customer's Designs and Logos are Welcome
. Competitive Price
. Fit for Gifts & Premiums
. In a Variety of Designs
. Small Order Accepted
. ODM Accepted
. OEM Accepted





Carton Sealing Machine
Product Information

Model/Item No.:TJ-552TB

Primary Competitive Advantages:

. Excellent and High Quality Control
. Prompt Delivery
. Customer's Designs and Logos are Welcome
. Competitive Price
. Fit for Gifts & Premiums
. In a Variety of Designs
. Small Order Accepted
. ODM Accepted
. OEM Accepted



Fully Automatic Carton Sealing Machine
Product Information

Model/Item No.:TJ-555A

Primary Competitive Advantages:

. Excellent and High Quality Control
. Prompt Delivery
. Customer's Designs and Logos are Welcome
. Competitive Price
. Fit for Gifts & Premiums
. In a Variety of Designs
. Small Order Accepted
. ODM Accepted
. OEM Accepted

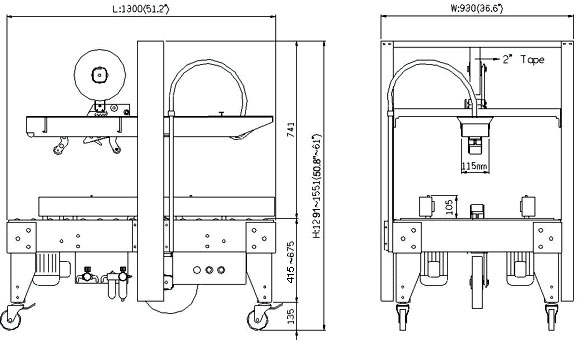

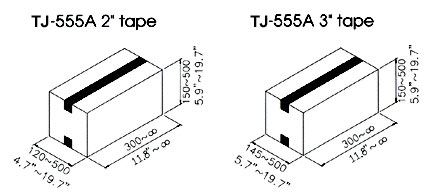

Model
TJ--555A
Power Supply
1 110V/220V(50/60Hz),
3 220V/380V/440V(50/60Hz),
Two motors, 370W
Sealing Speed
20M/per min at 60Hz
Cartons/Hr
400 Cartons per hr (60Hz)
(Carton L300xW300xH300 mm)
Tape Width
2" or 3" (can also use 2"or 2.5" tape with paper roll)
Shipping Size
L1350xW980xH1344mm
(L53.1"xW38.6"xH52.9")
N.W.
190 kgs, 418 (lbs)
G.W.
240 kgs, 528 (lbs)

Note: Specifications subject to change without notice.
Note: If the carto's height exceed its length, it's not suitable to use this machine.

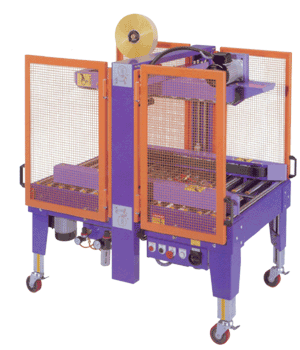

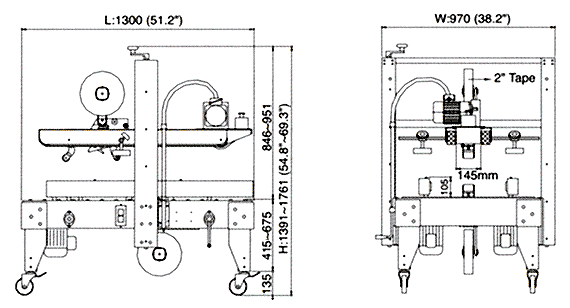

TJ-556A Fully-Auto Random Carton Sealing Machine
Top and Side Belt Drive

New up and down mechanism-patent No. 182493, 159450

FEATURES:

  • Fully automatic adjust the width and height to meet different carton size. No need to adjust by hand.
  • New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices.
  • Driven by top and tow side belts and the main mechanism use omni-bearing bracket. It provides higher precision, lower noise and also can prolong the machine's life.
  • Tape overlap length can be adjusted from 55~65mm. (if need 70¡Ó5mm or 95¡Ó5mm, can be made by request)
  • PW-556A has a total of 4 drive belts, two side drive belts and two top drive belts. Three motors are supplied to drive belts. The machine has been designed for heavy cartons and can also seal tall-thin cartons.

Options:

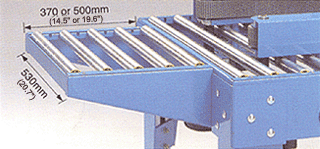

  • Extension roller table.
  • Close type-Table roller or Extension roller table.
  • Auto stop device.
  • Safety fence.

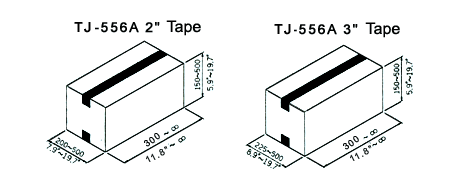

Model
TJ-556A
Power Supply
1 110V/220V(50/60Hz),
3 220V/380V/440V(50/60Hz),
Three motors, 555W
Sealing Speed
20M/per min at 60Hz
Cartons/Hr
400 Cartons per hr (60Hz)
(Carton L300xW300xH300 mm)
Tape Width
2" or 3" (can also use 2"or 2.5" tape with paper roll)
Shipping Size
L1350xW980xH1344mm
(L53.1"xW38.6"xH52.9")
N.W.
210kgs, 462 (lbs)
G.W.
260kgs, 572 (lbs)

Note: Specifications subject to change without notice.
Note: If the carto's height exceed its length, it's not suitable to use this machine.

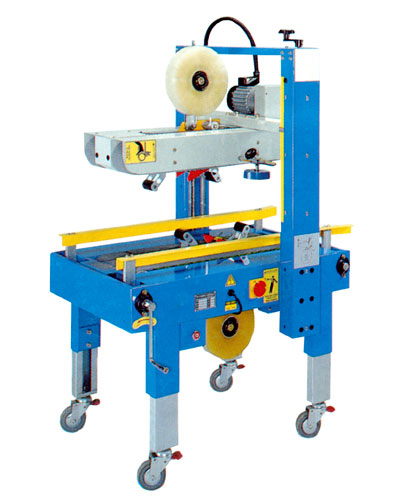

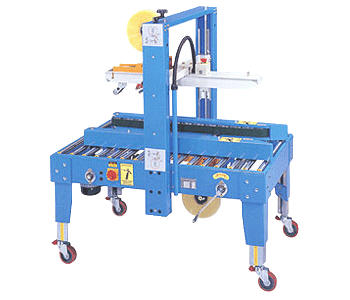

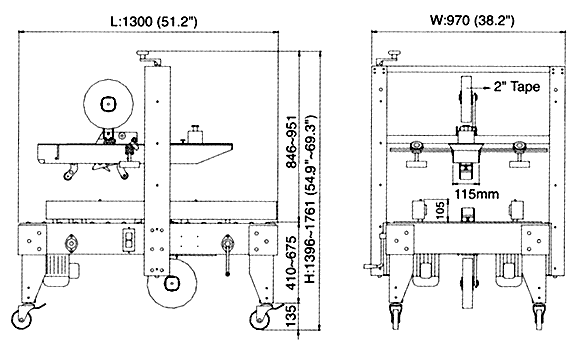

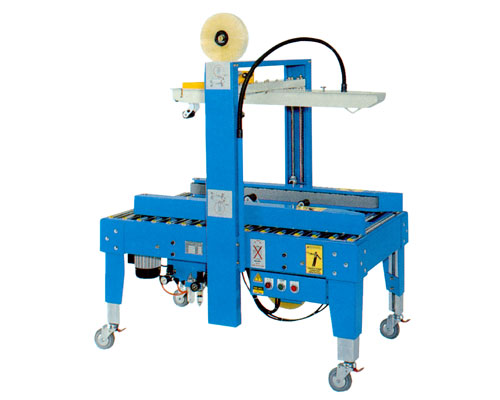

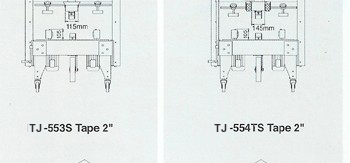

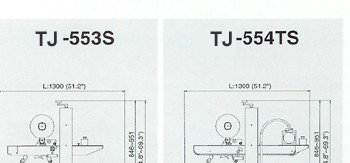

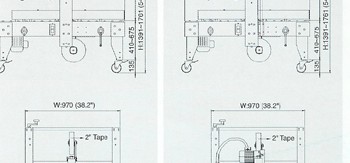

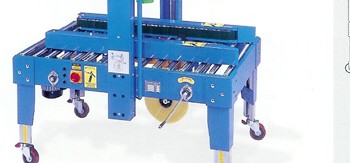

TJ 553S Auto Carton Sealing Machine Side Belt Drive

New Tapping Head- Patent No. 123859 ,145797
New Up and Down Mechanism- Patent No. 182493, 159450

FEATURES:

  • New tapping head incorporating a V shaped plate (patented) designed to keep the tape straight and in position for consistent sealing of every carton. This design is superior to previous blower devices.
  • Driven by two side drive belts, each belt has a separate drive mechanism using a special bearing bracket. This provides higher precision, lower noise and lengthens belt life.
  • Tape overlap length can be adjusted from 55mm-65mm. Tape overlap of 70 ¡Ó 5mm and 95 ¡Ó 5mm can be provided on request.

Options:

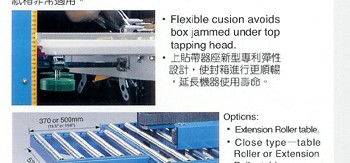

  • Flexible cushion avoids box jammed under top tapping head.
  • Extension Roller table.
    Close type-table Roller or Extension Roller table.
  • Auto Stop device.

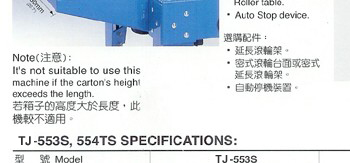

Note: It's not suitable to use this machine if the carton's height exceeds the length.

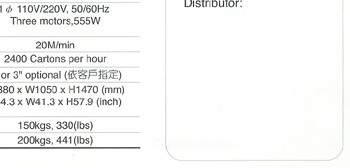

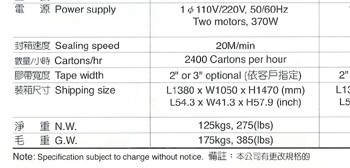

SPECIFICATIONS:
Model
TJ-553S
Power Supply
1ø 110V/220V,50/60Hz
Two motors, 370W
Sealing Speed
20M/min at 60Hz
Cartons/Hr
2400 Cartons per hour

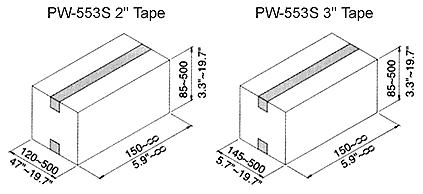

Tape Width
2" or 3"
(2" or 2.5" tape also can be used in 3" tape head with paper roll)
Shipping Size
L1380xW1050xH1470(mm)
L54.3xW41.3xH57.9(inch)
N.W.
125kgs, 275(lbs)
G.W.
175kgs, 385(lbs)

Note: Specifications subject to change without notice.
Note: If the carton's height exceed its length, it's not suitalde to use this machine.





¤¸¯u¦³­­¤½¥q/(­Zñ¯¦³­­¤½¥q)

Yen Jan Co., Ltd.

Address : 237, Chien Kuo Rd.

City: Guanyin, Taoyuan Hsien

Country/Region: Taiwan

Zip/Post Code:328

Tel:886-3-4160788/ 886-2-22141867

Fax:886-3-4160696/886-2-22141924

Email:f2125675@ms15.hinet.net

Attn.-1: Mei-Fang Huang/Business Liaison

Attn.-2: Chia-Hung Kao/Manager

Url-1:http://www.tehjai.ttnet.net/

Url-2:http://www.tjp.com.tw/
